dynotron

Portable High Power LED Lights by Western Technology, Inc.

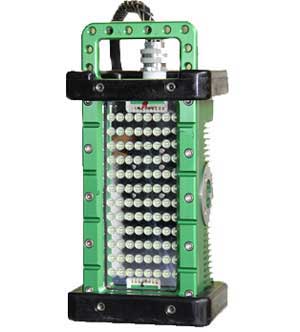

9610 Brick LightClick Light to Enlarge
9610 Brick LED Light
Western Technology
Made in the USA
Click to Close

9610 BRICK LED Explosion Proof Area Light

  • Approved for Hazardous Locations: Class 1, Div 1, Groups C,D Class II, Div 2, Groups F,G
  • XP-G LEDs emitting color at 6000K (+/-200K)
  • LEDs rated at ~11,520 Lumens
  • Thermal temperatures rated at T5/T4 with ambient references
  • Lux at 1 foot with optics
  • Focus: Fixed mirror system at 120 degrees emitting dispersion
  • Low current and DC Voltage to light: 36VDC and 2A
  • LEDs driven at: 0.35A and 3VDC
  • Dimensions: Length=10” x Width= 5” x Height=5”
  • Weight: 10-13 lbs depending on model
  • Mounting- Magnet:Stake:Tripod:Hook:Adjustable Stands

3400 LED
Click Light to Enlarge

3400 LED Light
Western Technology
Made in the USA

Click to Close

3400LED No-Air Polyurethane LED Blast Light

  • All polyurethane construction
  • 3400LEDS 120V AC system includes power pack, 100 feet Extreme Cable electric cable, primary cord, cord plug, and 3112LB stanchion
  • Model 3400LEDBAT100 may be connected directly to 12VDC battery; comes with battery clamp

2106 Brickette Light
Click Light to Enlarge
2106 Brickette LED Light
Western Technology
Made in the USA

Click to Close

2106 BRICKETTE LED Explosion Proof Area Light

  • To be approved for: Class 1, Div 1 & 2, Groups C & D
  • To be approved for: Class II, Div 1 & 2; Groups E, F, & G
  • To be approved for: CSA Zones 1 & 2; Zones 20, 21, & 22
  • Approved for Wet Location usage
  • Temperature Rating: T5/T4
  • LED Color: ~6000K
  • Rated with optics: 26,000 Lux at 1'
  • Rated with optics: >2,500 lumens
  • Reflective Optic Beam Angle: 60 degrees
  • Light Head Power: 24VDC, 700mA
  • Bumper Protection
  • Weight: 2.8 lbs/pounds
  • Dimensions: 6"L x 2.9"W x 2.3"H


Click Light to Enlarge
8100 Stryker LED Light
Western Technology
Made in the USA
Click to Close

8100 STRYKER LED Explosion Proof Work Light

  • Complies with explosion proof/hazardous location requirements
  • Class I Div 1 and Div 2 Groups C & D / Class II Div 1 and Div 2 Groups F & G
  • Thermal temperatures rated at T4- Max down temperature not to exceed 135 degrees
  • 12 LEDs emitting color at 5700K
  • LEDs rated at ~120 Lumens each
  • Lux at 1 foot measured at 4900
  • Focus: Flat broad 170 degrees emitting dispersion
  • Drive amperage of LED board: 0.35A
  • Lamp Type: High Performance Solid State Diodes with Optical Grade Composite Film and Replaceable Lens
  • Dimensions & Weight: 3 in Diameter x 12.57 in Length, 2.73 lbs
  • Options: Mounting Hook, Diffuser, Cut to Length Cable, Multiple Drop String Light Configuration Built to Order

3460LED Gen2
Click Light to Enlarge
3460LED Gen2 Blast Light
Western Technology
Made in the USA
Click to Close

3460LED Gen2 No-Air Polyurethane LED Blast Light

  • LEDs emitting color at 6000K (+/-200K)
  • Rated at: 840 lumens and >40,000 lux at 1 foot with optics
  • Refractive optical design for targeted focus at 25° beam angle
  • LEDs driven at: 0.35A and 3VDC
  • Low current & DC voltage to light: 21VDC & 2-3A
  • Option to power directly from 12VDC source
  • Polyurethane/Delrin construction: Extremely durable & light weight
  • Replaceable blast lens
  • Dimensions: Length= 7" x Halo Diameter= 3"
  • Weight: 2.3 lbs
  • Mounting- Blast hose:Hand held:Hook
  • Utility:Blast:Boiler Inspection:Hydro/Water Blast
PRODUCTS- Industrial LED Light
Back to ALL PRODUCTS
Interested? Inquire Here Name:  Company:

9610 Brick Light
3400 LED Light
2106 Brickette Light
8100 Stryker Light
3460 Gen2 Light


Cree

Hazardous Location Information- Applications:
  • First Responders
  • Hazardous Location
  • Inspection / Maintenance
  • Aviation
  • Painting / Coating
  • Petrochemical
  • Jet Bridge Operation
  • Marine / Shipyard
  • Equipment Operation
  • Blast Cleaning
  • Confined Spaces
  • Fuel / Liquid Handling
  • General Area Lighting
  • Nuclear
  • Offshore Exploration
PRODUCT SHEETS (PDF)
  • 9610 BRICK Light
  • 8100 STRYKER Light
  • 3460 Gen2 Light
  • 3400LED Blast Light
  • 3400LED Series
OPERATOR MANUALS (PDF)
  • 9610 BRICK Light
  • 3400LED Blast Light
  • 2106 Brickette Light
  • 8100 STRYKER Light
  • 3460 Gen2 Light
Accessories Available- Suitable for explosion proof/hazardous locations
9610 KNUCKLE
9610 Knuckle Accessory
9610 PUCK MAGNET
Magnetic puck
